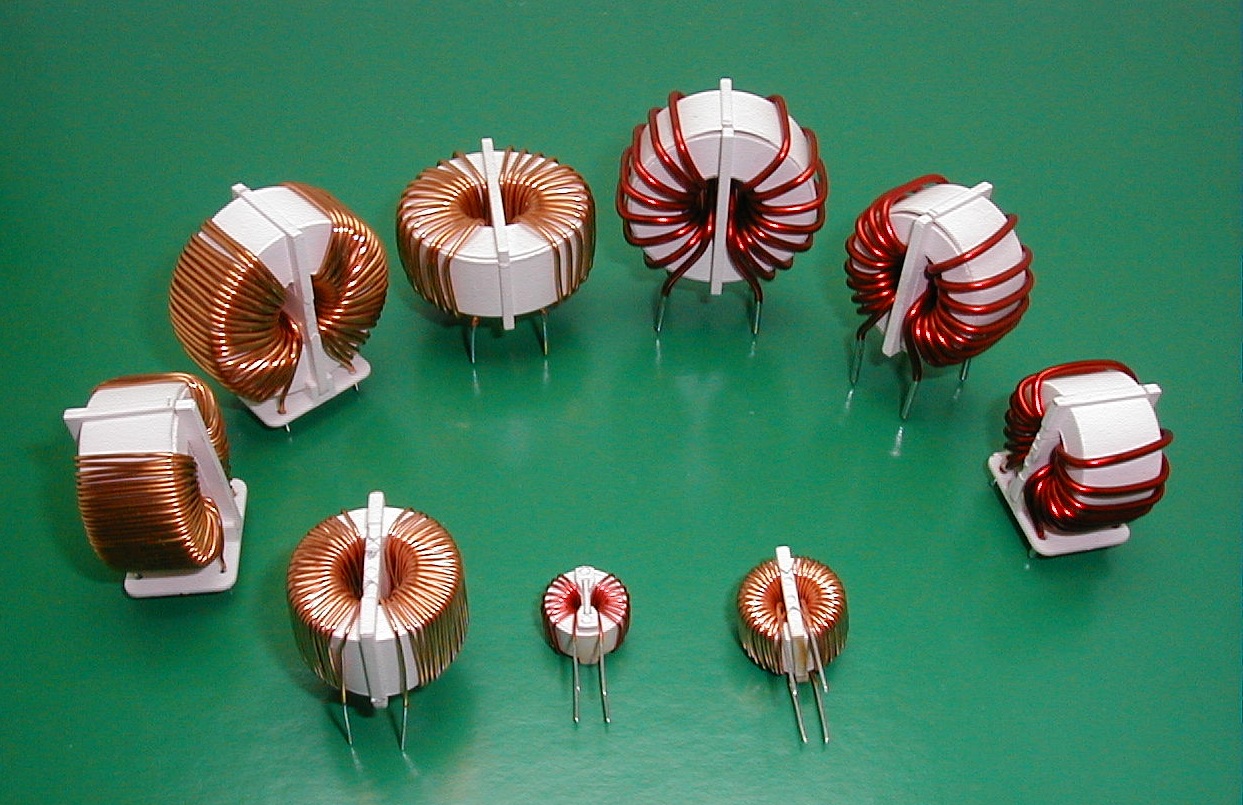

Common Mode Inductor (TL54 Series) |
[][] | Features:
|
|
| Part Number | Inductance (mH, ±30%) #1 – #2, #4 – #3 | DC Resistance (mW, max.) #1 – #2, #4 – #3 | Irms (A) | Dimension (nominal value, in mm) | Type | Weight (g) approx. | |||
| A | B | C | D | ||||||
|
TL54-1A-001 TL54-1A-002 TL54-1A-003 TL54-1A-004 TL54-1A-005 |
1.28 0.99 0.46 0.204 0.073 |
160 110 65 30 18 |
0.5 0.8 1.0 1.5 2.0 |
14.0 14.0 14.0 14.0 14.0 |
12.4 12.4 12.4 12.4 12.4 |
7.8 7.8 7.8 7.8 7.8 |
f0.31 f0.35 f0.40 f0.50 f0.55 |
A A A A A |
2 2 2 2 2 |
|
TL54-1B-001 TL54-1B-002 TL54-1B-003 TL54-1B-004 TL54-1B-005 |
1.28 0.99 0.46 0.204 0.073 |
160 110 65 30 18 |
0.5 0.8 1.0 1.5 2.0 |
14.0 14.0 14.0 14.0 14.0 |
12.4 12.4 12.4 12.4 12.4 |
7.8 7.8 7.8 7.8 7.8 |
f0.31 f0.35 f0.40 f0.50 f0.55 |
B B B B B |
2 2 2 2 2 |
|
TL54-2A-001 TL54-2A-002 TL54-2A-003 TL54-2A-004 TL54-2A-005 |
1.35 1.05 0.93 0.80 0.34 |
120 90 70 50 25 |
1.0 1.0 1.5 1.5 2.0 |
16.0 16.0 16.0 16.0 16.0 |
12.5 12.5 12.5 12.5 12.5 |
14.5 14.5 14.5 14.5 14.5 |
f0.37 f0.40 f0.45 f0.50 f0.60 |
A A A A A |
4 4 4 4 4 |
|
TL54-2B-001 TL54-2B-002 TL54-2B-003 TL54-2B-004 TL54-2B-005 |
1.35 1.05 0.93 0.80 0.34 |
120 90 70 50 25 |
1.0 1.0 1.5 1.5 2.0 |
16.0 16.0 16.0 16.0 16.0 |
12.5 12.5 12.5 12.5 12.5 |
14.5 14.5 14.5 14.5 14.5 |
f0.37 f0.40 f0.45 f0.50 f0.60 |
B B B B B |
4 4 4 4 4 |
|
TL54-3A-001 TL54-3A-002 TL54-3A-003 TL54-3A-004 TL54-3A-005 |
5.3 4.4 3.8 2.6 1.9 |
290 210 165 90 60 |
1.0 1.5 1.5 2.0 3.0 |
20.0 20.0 20.0 20.0 20.0 |
16.0 16.0 16.0 16.0 16.0 |
20.0 20.0 20.0 20.0 20.0 |
f0.40 f0.45 f0.50 f0.60 f0.70 |
A A A A A |
10 10 10 10 10 |
|
TL54-3B-001 TL54-3B-002 TL54-3B-003 TL54-3B-004 TL54-3B-005 |
5.3 4.4 3.8 2.6 1.9 |
290 210 165 90 60 |
1.0 1.5 1.5 2.0 3.0 |
20.0 20.0 20.0 20.0 20.0 |
16.0 16.0 16.0 16.0 16.0 |
20.0 20.0 20.0 20.0 20.0 |
f0.40 f0.45 f0.50 f0.60 f0.70 |
B B B B B |
10 10 10 10 10 |
|
TL54-4A-001 TL54-4A-002 TL54-4A-003 TL54-4A-004 TL54-4A-005 |
10.8 7.4 4.7 2.5 0.7 |
115 60 40 20 10 |
3.0 4.0 5.0 10 12 |
30.0 30.0 31.0 32.0 32.0 |
22.0 22.0 22.0 22.0 22.0 |
29.0 29.0 29.0 29.0 29.0 |
f0.7 f0.9 f1.0 f1.2 f1.4 |
A A A A A |
40 40 40 40 40 |
|
TL54-4B-001 TL54-4B-002 TL54-4B-003 TL54-4B-004 TL54-4B-005 |
10.8 7.4 4.7 2.5 0.7 |
115 60 40 20 10 |
3.0 4.0 5.0 10 12 |
30.0 30.0 31.0 32.0 32.0 |
22.0 22.0 22.0 22.0 22.0 |
29.0 29.0 29.0 29.0 29.0 |
f0.7 f0.9 f1.0 f1.2 f1.4 |
B B B B B |
40 40 40 40 40 |
|
TL54-4C-001 TL54-4C-002 TL54-4C-003 TL54-4C-004 TL54-4C-005 |
10.8 7.4 4.7 2.5 0.7 |
115 60 40 20 10 |
3.0 4.0 5.0 10 12 |
30.0 30.0 31.0 32.0 32.0 |
22.0 22.0 22.0 22.0 22.0 |
31.0 31.0 31.0 31.0 31.0 |
f0.7 f0.9 f1.0 f1.2 f1.4 |
C C C C C |
50 50 50 50 50 |
|
TL54-5A-001 TL54-5A-002 TL54-5A-003 TL54-5A-004 TL54-5A-005 |
11.5 8.0 6.0 2.9 1.1 |
100 55 35 18 10 |
4.0 5.0 10 12 16 |
36.0 36.0 37.0 38.0 38.0 |
23.0 23.0 23.0 23.0 23.0 |
35.5 35.5 35.5 35.5 35.5 |
f0.8 f1.0 f1.2 f1.4 f1.6 |
A A A A A |
55 55 55 55 55 |
|
TL54-5B-001 TL54-5B-002 TL54-5B-003 TL54-5B-004 TL54-5B-005 |
11.5 8.0 6.0 2.9 1.1 |
100 55 35 18 10 |
4.0 5.0 10 12 16 |
36.0 36.0 37.0 38.0 38.0 |
23.0 23.0 23.0 23.0 23.0 |
35.5 35.5 35.5 35.5 35.5 |
f0.8 f1.0 f1.2 f1.4 f1.6 |
B B B B B |
55 55 55 55 55 |
|
TL54-5C-001 TL54-5C-002 TL54-5C-003 TL54-5C-004 TL54-5C-005 |
11.5 8.0 6.0 2.9 1.1 |
100 55 35 18 10 |
4.0 5.0 10 12 16 |
36.0 36.0 37.0 38.0 38.0 |
23.0 23.0 23.0 23.0 23.0 |
38.0 38.0 38.0 38.0 38.0 |
f0.8 f1.0 f1.2 f1.4 f1.6 |
C C C C C |
65 65 65 65 65 |
|
TL54-6A-001 TL54-6A-002 TL54-6A-003 TL54-6A-004 TL54-6A-005 |
5.8 3.0 1.34 0.60 0.46 |
35 20 10 6 3 |
10 12 16 20 25 |
44.5 45.0 46.0 46.0 49.0 |
22.5 23.0 23.5 24.0 25.0 |
42.5 42.5 42.5 42.5 42.5 |
f1.2 f1.4 f1.6 f1.8 f2.0 |
A A A A A |
80 80 80 80 80 |
|
TL54-6B-001 TL54-6B-002 TL54-6B-003 TL54-6B-004 TL54-6B-005 |
1.82 1.13 0.93 0.60 0.46 |
20 12 8 6 3 |
10 12 16 20 25 |
44.5 45.0 46.0 46.0 49.0 |
22.5 23.0 23.5 24.0 25.0 |
42.5 42.5 42.5 42.5 42.5 |
f1.2 f1.4 f1.6 f1.8 f2.0 |
B B B B B |
80 80 80 80 80 |
|
TL54-6C-001 TL54-6C-002 TL54-6C-003 TL54-6C-004 TL54-6C-005 |
5.8 3.0 1.34 0.60 0.46 |
35 20 10 6 3 |
10 12 16 20 25 |
44.5 45.0 46.0 46.0 49.0 |
22.5 23.0 23.5 24.0 25.0 |
42.5 42.5 42.5 42.5 42.5 |
f1.2 f1.4 f1.6 f1.8 f2.0 |
C C C C C |
90 90 90 90 90 |
