Encapsulated Toroidal Transformer (TL97 Series)

Encapsulated Toroidal Transformer (TL97 Series)



 Features:

  • Low magnetic stray field emissions
  • Low standby current
  • Low profile
  • Magnetic & capacitive shielded
  • Fully encapsulated
  • High efficiency
  • Ambient temperature – 40°C
  • Power – 90VA to 160VA
  • Primary – 230V 50Hz
  • Secondary – Series or parallel
  • Dielectric strength – 4000Vrms
  • Insulation Class – Class B (130°C)

Safety Approval:

  • TUV /CE: EN60950 / EN60065 (TUV-SUD   B 11 01 60135 009)

[[













Product Series Dimensions (mm) Weight   (g)
A B C D E F (Hex) G H I J K L M

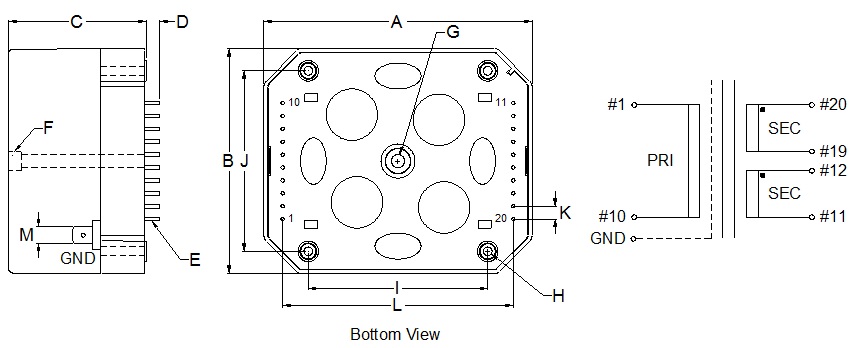

90 VA 106.0 88.5 54.5 4.0 SQ1.0 7.0 DIA5.1 DIA3.4 70.0 70.0 5.0 90.0 6.3 1250
Tolerance max. max. max. ±1.0 ±0.1 ±0.3 ±0.3 ±0.3 ±0.5 ±0.5 ±0.3 ±0.5 ±0.2 approx.

Note: Unused pins are omitted for standard parts. Unused pins can be provided on request.















Product Series Dimensions (mm) Weight (g)
A B C D E F (Hex) G H I J K L M

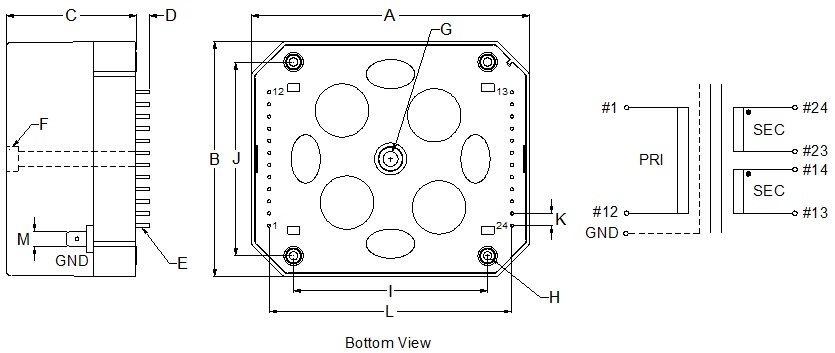

110 VA 116.0 98.5 54.5 4.0 SQ 1.0 10.0 DIA6.15 DIA3.4 80.0 80.0 5.0 100.0 6.3 1500
Tolerance max. max. max. ±1.0 ±0.1 ±0.5 ±0.3 ±0.3 ±0.5 ±0.5 ±0.3 ±0.5 ±0.2 approx.

Note: Unused pins are omitted for standard parts. Unused pins can be provided on request.



















Product Series Dimensions (mm) Weight (g)
A B C D E F (Hex) G H I J K L M

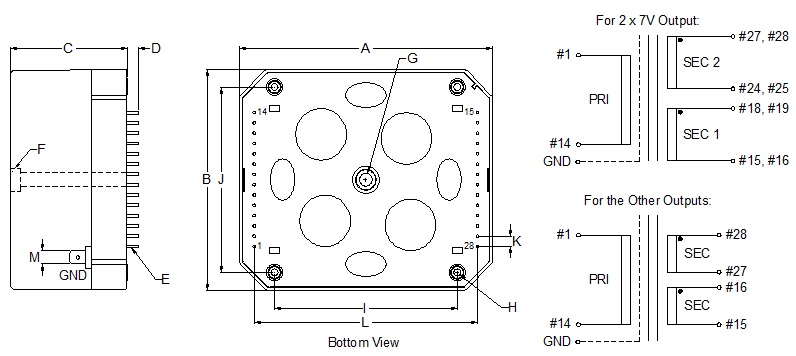

160 VA 126.0 108.5 57.5 4.0 SQ 1.0 10.0 DIA6.15 DIA3.4 90.0 90.0 5.0 110.0 6.3 2000
Tolerance max. max. max. ±1.0 ±0.1 ±0.5 ±0.3 ±0.3 ±0.5 ±0.5 ±0.3 ±0.5 ±0.2 approx.

Note: Unused pins are omitted for standard parts. Unused pins can be provided on request.

Product Series Part Number Input Voltage  (V) Secondary RMS Rating ta (°C)
Series Parallel
90 VA TL97-0900-014

TL97-0900-018

TL97-0900-024

TL97-0900-030

TL97-0900-036

TL97-0900-048

TL97-0900-060

 230 14V

18V

24V

30V

36V

48V

60V

 @ 6428mA

@ 5000mA

@ 3750mA

@ 3000mA

@ 2500mA

@ 1875mA

@ 1500mA

 7V

9V

12V

15V

18V

24V

30V

 @ 12856mA

@ 10000mA

@ 7500mA

@ 6000mA

@ 5000mA

@ 3750mA

@ 3000mA

 40
110 VA TL97-1100-014

TL97-1100-018

TL97-1100-024

TL97-1100-030

TL97-1100-036

TL97-1100-048

TL97-1100-060

 230 14V

18V

24V

30V

36V

48V

60V

 @ 7857mA

@ 6111mA

@ 4583mA

@ 3666mA

@ 3055mA

@ 2291mA

@ 1833mA

 7V

9V

12V

15V

18V

24V

30V

 @ 15714mA

@ 12222mA

@ 9166mA

@ 7332mA

@ 6110mA

@ 4582mA

@ 3666mA

 40
160 VA TL97-1600-014

TL97-1600-018

TL97-1600-024

TL97-1600-030

TL97-1600-036

TL97-1600-048

TL97-1600-060

 230 14V

18V

24V

30V

36V

48V

60V

 @ 11428mA

@ 8888mA

@ 6666mA

@ 5333mA

@ 4444mA

@ 3333mA

@ 2666mA

 7V

9V

12V

15V

18V

24V

30V

 @ 22856mA

@ 17776mA

@ 13332mA

@ 10666mA

@ 8888mA

@ 6666mA

@ 5332mA

 40

[][]]][]
