Features:
Safety Approval:
|
||
[] |
Product Series | Primary (V) | Single Secondary |
Dual Secondary | ta (°C) | Agency Approval | ||||
Part Number |
Secondary Rating | Part Number |
Seccondary Rating | ||||||
(V) |
(mA) | (V) | (mA) | ||||||
0.6VA |
230 |

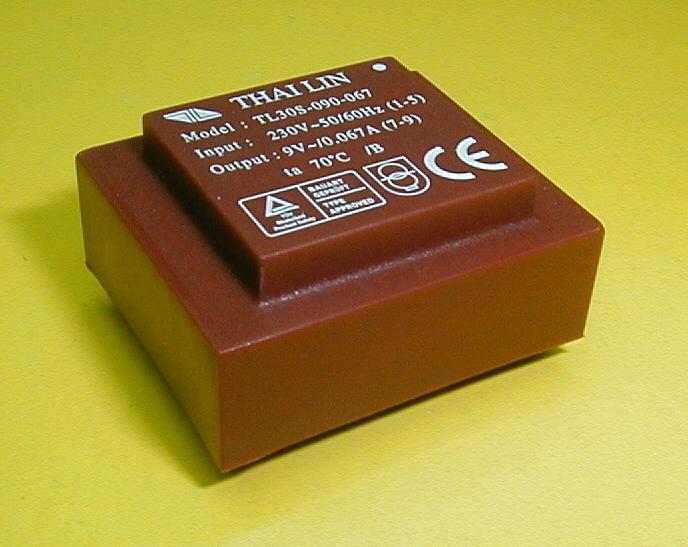

* TL30S-060-100 * TL30S-072-083 * TL30S-090-067 * TL30S-100-060 * TL30S-120-050 * TL30S-150-040 TL30S-180-033 TL30S-240-025 |
6 7.2 9 10 12 15 18 24 |
100 83 67 60 50 40 33 25 |
* TL30D-060-050 * TL30D-072-042 TL30D-090-033 TL30D-100-030 TL30D-120-025 TL30D-150-020 TL30D-180-017 TL30D-240-012 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
50 42 33 30 25 20 17 12 |
70 |
* UL5085-3 C-UL TUV CE CQC |
115 |
TL30US-060-100 TL30US-072-083 TL30US-090-067 TL30US-100-060 TL30US-120-050 TL30US-150-040 TL30US-180-033 TL30US-240-025 |
6 7.2 9 10 12 15 18 24 |
100 83 67 60 50 40 33 25 |
TL30UD-060-050 TL30UD-072-042 TL30UD-090-033 TL30UD-100-030 TL30UD-120-025 TL30UD-150-020 TL30UD-180-017 TL30UD-240-012 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
50 42 33 30 25 20 17 12 |
70 |
UL506 C-UL |
|
115 |
* TL30US-060-100 (C2) * TL30US-072-083 (C2) * TL30US-090-067 (C2) * TL30US-100-060 (C2) * TL30US-120-050 (C2) * TL30US-150-040 (C2) |
6 7.2 9 10 12 15 |
100 83 67 60 50 40 |
* TL30UD-060-050 (C2) * TL30UD-072-042 (C2) [] [] [] [] |
2 x 6 2 x 7.2 [ [ [ [ |
50 42 [ [ [ [ |
70 |
* UL5085-3 C-UL |
|
115 (Parallel) or 230 (Series) |
* TL30MS-060-100 * TL30MS-072-083 * TL30MS-090-067 * TL30MS-100-060 * TL30MS-120-050 * TL30MS-150-040 TL30MS-180-033 TL30MS-240-025 |
6 7.2 9 10 12 15 18 24 |
100 83 67 60 50 40 33 25 |
* TL30MD-060-050 * TL30MD-072-042 TL30MD-090-033 TL30MD-100-030 TL30MD-120-025 TL30MD-150-020 TL30MD-180-017 TL30MD-240-012 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
50 42 33 30 25 20 17 12 |
70 |
* UL5085-3 UL506 C-UL TUV CE CQC |
Note: Items marked with “*” are approved to UL5085-3 (Class 2) & C-UL: CSA C22.2 No. 66-3-06.
