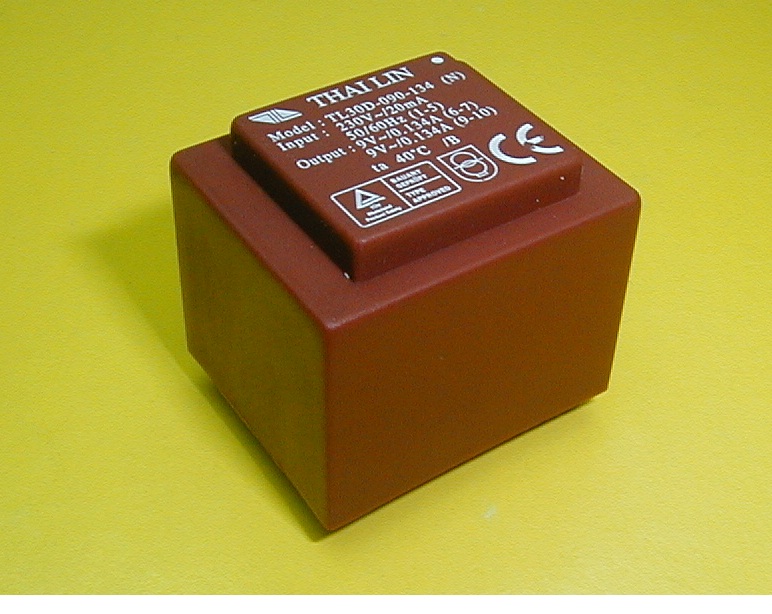

Encapsulated Transformer (EI30 / 15.5 Series) ] |
Features:
Safety Approval:
[ |
||
| []
[ ] |
| Product Series | Primary (V) |
Single Secondary |
Dual Secondary |
ta (°C) | Agency Approval |
||||
| Part Number |
Secondary Rating |
Part Number |
Secondary Rating |
||||||
| (V) | (mA) | (V) | (mA) | ||||||
| 1.8VA | 230 | * TL30S-060-300
* TL30S-072-250 * TL30S-090-200 * TL30S-100-180 * TL30S-120-150 * TL30S-150-120 * TL30S-180-100 TL30S-240-076 |
6
7.2 9 10 12 15 18 24 |
300
250 200 180 150 120 100 76 |
* TL30D-060-150
* TL30D-072-125 * TL30D-090-100 TL30D-100-090 TL30D-120-075 TL30D-150-060 TL30D-180-050 TL30D-240-038 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
150
125 100 90 75 60 50 38 |
70 | * UL5085-3
C-UL TUV CE CQC |
| 115 | TL30US-060-300
TL30US-072-250 TL30US-090-200 TL30US-100-180 TL30US-120-150 TL30US-150-120 TL30US-180-100 TL30US-240-076 |
6
7.2 9 10 12 15 18 24 |
300
250 200 180 150 120 100 76 |
TL30UD-060-150
TL30UD-072-125 TL30UD-090-100 TL30UD-100-090 TL30UD-120-075 TL30UD-150-060 TL30UD-180-050 TL30UD-240-038 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
150
125 100 90 75 60 50 38 |
70 | UL506
C-UL |
|
| 115 | * TL30US-060-300 (C2)
* TL30US-072-250 (C2) * TL30US-090-200 (C2) * TL30US-100-180 (C2) * TL30US-120-150 (C2) * TL30US-150-120 (C2) * TL30US-180-100 (C2) |
6
7.2 9 10 12 15 18 |
300
250 200 180 150 120 100 |
* TL30UD-060-150 (C2)
* TL30UD-072-125 (C2) * TL30UD-090-100 (C2) * TL30UD-060-150 (C2) * TL30UD-072-125 (C2) * TL30UD-090-100 (C2) * TL30UD-090-100 (C2) |
2 x 6
2 x 7.2 2 x 9 2 x 6 2 x 7.2 2 x 9 2 x 9 |
150
125 100 150 125 100 100 |
70 | * UL5085-3
C-UL |
|
| 115
(Parallel) or 230 (Series) |
* TL30MS-060-300
* TL30MS-072-250 * TL30MS-090-200 * TL30MS-100-180 * TL30MS-120-150 * TL30MS-150-120 * TL30MS-180-100 TL30MS-240-076 |
6
7.2 9 10 12 15 18 24 |
300
250 200 180 150 120 100 76 |
* TL30MD-060-150
* TL30MD-072-125 * TL30MD-090-100 TL30MD-100-090 TL30MD-120-075 TL30MD-150-060 TL30MD-180-050 TL30MD-240-038 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
150
125 100 90 75 60 50 38 |
70 | * UL5085-3
UL5085-1/-2 C-UL TUV CE CQC |
|
| 400 | TL30HS-060-300
TL30HS-072-250 TL30HS-090-200 TL30HS-100-180 TL30HS-120-150 TL30HS-150-120 TL30HS-180-100 TL30HS-240-076 |
6
7.2 9 10 12 15 18 24 |
300
250 200 180 150 120 100 76 |
TL30HD-060-150
TL30HD-072-125 TL30HD-090-100 TL30HD-100-090 TL30HD-120-075 TL30HD-150-060 TL30HD-180-050 TL30HD-240-038 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
150
125 100 90 75 60 50 38 |
70 | — | |
| 2.1VA
|
230 | * TL30S-060-350
* TL30S-072-292 * TL30S-090-234 * TL30S-100-210 * TL30S-120-176 * TL30S-150-140 TL30S-180-118 TL30S-240-088 |
6
7.2 9 10 12 15 18 24 |
350
292 234 210 176 140 118 88 |
* TL30D-060-175
* TL30D-072-146 TL30D-090-117 TL30D-100-105 TL30D-120-088 TL30D-150-070 TL30D-180-059 TL30D-240-044 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
175
146 117 105 88 70 59 44 |
70 | * UL5085-3
C-UL TUV CE CQC |
| 115 | TL30US-060-350
TL30US-072-292 TL30US-090-234 TL30US-100-210 TL30US-120-176 TL30US-150-140 TL30US-180-118 TL30US-240-088 |
6
7.2 9 10 12 15 18 24 |
350
292 234 210 176 140 118 88 |
TL30UD-060-175
TL30UD-072-146 TL30UD-090-117 TL30UD-100-105 TL30UD-120-088 TL30UD-150-070 TL30UD-180-059 TL30UD-240-044 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
175
146 117 105 88 70 59 44 |
70 | UL506
C-UL |
|
| 115 | * TL30US-060-350 (C2)
* TL30US-072-292 (C2) * TL30US-090-234 (C2) * TL30US-100-210 (C2) * TL30US-120-176 (C2) * TL30US-150-140 (C2) |
6
7.2 9 10 12 15 |
350
292 234 210 176 140 |
* TL30UD-060-175 (C2)
* TL30UD-072-146 (C2) * TL30UD-060-175 (C2) * TL30UD-072-146 (C2) * TL30UD-060-175 (C2) * TL30UD-072-146 (C2) |
2 x 6
2 x 7.2 2 x 6 2 x 7.2 2 x 6 2 x 7.2 |
175
146 175 146 175 146 |
70 | * UL5085-3
C-UL |
|
| 115
(Parallel) or 230 (Series) |
* TL30MS-060-350
* TL30MS-072-292 * TL30MS-090-234 * TL30MS-100-210 * TL30MS-120-176 * TL30MS-150-140 TL30MS-180-118 TL30MS-240-088 |
6
7.2 9 10 12 15 18 24 |
350
292 234 210 176 140 118 88 |
* TL30MD-060-175
* TL30MD-072-146 TL30MD-090-117 TL30MD-100-105 TL30MD-120-088 TL30MD-150-070 TL30MD-180-059 TL30MD-240-044 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
175
146 117 105 88 70 59 44 |
70 | * UL5085-3
UL5085-1/-2 C-UL TUV CE CQC |
|
| 400 | TL30HS-060-350
TL30HS-072-292 TL30HS-090-234 TL30HS-100-210 TL30HS-120-176 TL30HS-150-140 TL30HS-180-118 TL30HS-240-088 |
6
7.2 9 10 12 15 18 24 |
350
292 234 210 176 140 118 88 |
TL30HD-060-175
TL30HD-072-146 TL30HD-090-117 TL30HD-100-105 TL30HD-120-088 TL30HD-150-070 TL30HD-180-059 TL30HD-240-044 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
175
146 117 105 88 70 59 44 |
70 | — | |
| 2.4VA | 230 | TL30S-060-400
TL30S-072-334 TL30S-090-268 TL30S-100-240 TL30S-120-200 TL30S-150-160 TL30S-180-134 TL30S-240-100 |
6
7.2 9 10 12 15 18 24 |
400
334 268 240 200 160 134 100 |
TL30D-060-200
TL30D-072-167 TL30D-090-134 TL30D-100-120 TL30D-120-100 TL30D-150-080 TL30D-180-067 TL30D-240-050 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
200
167 134 120 100 80 67 50 |
40 | TUV
CE CQC |
| 115 | TL30US-060-400
TL30US-072-334 TL30US-090-268 TL30US-100-240 TL30US-120-200 TL30US-150-160 TL30US-180-134 TL30US-240-100 |
6
7.2 9 10 12 15 18 24 |
400
334 268 240 200 160 134 100 |
TL30UD-060-200
TL30UD-072-167 TL30UD-090-134 TL30UD-100-120 TL30UD-120-100 TL30UD-150-080 TL30UD-180-067 TL30UD-240-050 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
200
167 134 120 100 80 67 50 |
40 | UL506
C-UL |
|
| 115
(Parallel) or 230 (Series) |
TL30MS-060-400
TL30MS-072-334 TL30MS-090-268 TL30MS-100-240 TL30MS-120-200 TL30MS-150-160 TL30MS-180-134 TL30MS-240-100 |
6
7.2 9 10 12 15 18 24 |
400
334 268 240 200 160 134 100 |
TL30MD-060-200
TL30MD-072-167 TL30MD-090-134 TL30MD-100-120 TL30MD-120-100 TL30MD-150-080 TL30MD-180-067 TL30MD-240-050 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
200
167 134 120 100 80 67 50 |
40 | UL5085-1/-2
C-UL TUV CE CQC |
|
| 400 | TL30HS-060-400
TL30HS-072-334 TL30HS-090-268 TL30HS-100-240 TL30HS-120-200 TL30HS-150-160 TL30HS-180-134 TL30HS-240-100 |
6
7.2 9 10 12 15 18 24 |
400
334 268 240 200 160 134 100 |
TL30HD-060-200
TL30HD-072-167 TL30HD-090-134 TL30HD-100-120 TL30HD-120-100 TL30HD-150-080 TL30HD-180-067 TL30HD-240-050 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
200
167 134 120 100 80 67 50 |
40 | — | |
| 2.6VA
|
230 | TL30S-060-433
TL30S-072-361 TL30S-090-289 TL30S-100-260 TL30S-120-216 TL30S-150-173 TL30S-180-144 TL30S-240-108 |
6
7.2 9 10 12 15 18 24 |
433
361 289 260 216 173 144 108 |
TL30D-060-216
TL30D-072-180 TL30D-090-144 TL30D-100-130 TL30D-120-108 TL30D-150-086 TL30D-180-072 TL30D-240-054 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
216
180 144 130 108 86 72 54 |
40 | TUV
CE CQC |
| 115 | TL30US-060-433
TL30US-072-361 TL30US-090-289 TL30US-100-260 TL30US-120-216 TL30US-150-173 TL30US-180-144 TL30US-240-108 |
6
7.2 9 10 12 15 18 24 |
433
361 289 260 216 173 144 108 |
TL30UD-060-216
TL30UD-072-180 TL30UD-090-144 TL30UD-100-130 TL30UD-120-108 TL30UD-150-086 TL30UD-180-072 TL30UD-240-054 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
216
180 144 130 108 86 72 54 |
40 | UL5085-1/-2
C-UL |
|
| 115
(Parallel) or 230 (Series) |
TL30MS-060-433
TL30MS-072-361 TL30MS-090-289 TL30MS-100-260 TL30MS-120-216 TL30MS-150-173 TL30MS-180-144 TL30MS-240-108 |
6
7.2 9 10 12 15 18 24 |
433
361 289 260 216 173 144 108 |
TL30MD-060-216
TL30MD-072-180 TL30MD-090-144 TL30MD-100-130 TL30MD-120-108 TL30MD-150-086 TL30MD-180-072 TL30MD-240-054 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
216
180 144 130 108 86 72 54 |
40 | UL5085-1/-2
C-UL TUV CE CQC |
|
| 400 | TL30HS-060-433
TL30HS-072-361 TL30HS-090-289 TL30HS-100-260 TL30HS-120-216 TL30HS-150-173 TL30HS-180-144 TL30HS-240-108 |
6
7.2 9 10 12 15 18 24 |
433
361 289 260 216 173 144 108 |
TL30HD-060-216
TL30HD-072-180 TL30HD-090-144 TL30HD-100-130 TL30HD-120-108 TL30HD-150-086 TL30HD-180-072 TL30HD-240-054 |
2 x 6
2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
216
180 144 130 108 86 72 54 |
40 | — | |
Note: Items marked with “*” are approved to UL5085-3 (Class 2) & C-UL: CSA C22.2 No. 66-3-06.
