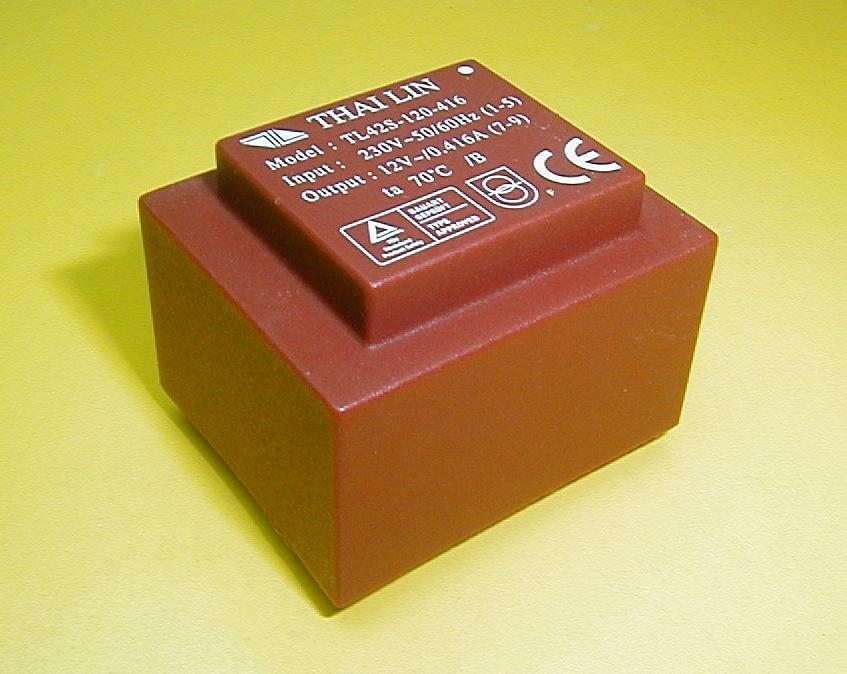

Encapsulated Transformer (EI42 / 14.8 Series) |
Features:
Safety Approval:
|
||
| [
[[ |
| Product Series | Primary (V) | Single Secondary | Dual Secondary | ta (°C) | Agency Approval | ||||
| Part Number | Secondary Rating | Part Number | Secondary Rating | ||||||
| (V) | (mA) | (V) | (mA) | ||||||
|
5.0VA
|
230 |
TL42S-060-833 TL42S-072-694 * TL42S-090-555 TL42S-100-500 TL42S-120-416 TL42S-150-333 TL42S-180-277 TL42S-240-208 |
6 7.2 9 10 12 15 18 24 |
833 694 555 500 416 333 277 208 |
TL42D-060-416 TL42D-072-347 TL42D-090-277 TL42D-100-250 TL42D-120-208 TL42D-150-166 TL42D-180-138 TL42D-240-104 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
416 347 277 250 208 166 138 104 |
70 |
* UL5085-3 TUV CE |
|
115 |
TL42US-060-833 TL42US-072-694 * TL42US-090-555 TL42US-100-500 TL42US-120-416 TL42US-150-333 TL42US-180-277 TL42US-240-208 |
6 7.2 9 10 12 15 18 24 |
833 694 555 500 416 333 277 208 |
TL42UD-060-416 TL42UD-072-347 TL42UD-090-277 TL42UD-100-250 TL42UD-120-208 TL42UD-150-166 TL42UD-180-138 TL42UD-240-104 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
416 347 277 250 208 166 138 104 |
70 |
* UL5085-3 UL506 C-UL |
|
|
115 (Parallel) or 230 (Series) |
TL42MS-060-833 TL42MS-072-694 TL42MS-090-555 TL42MS-100-500 TL42MS-120-416 TL42MS-150-333 TL42MS-180-277 TL42MS-240-208 |
6 7.2 9 10 12 15 18 24 |
833 694 555 500 416 333 277 208 |
TL42MD-060-416 TL42MD-072-347 TL42MD-090-277 TL42MD-100-250 TL42MD-120-208 TL42MD-150-166 TL42MD-180-138 TL42MD-240-104 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
416 347 277 250 208 166 138 104 |
70 |
UL5085-1/-2 C-UL TUV CE |
|
|
400 |
TL42HS-060-833 TL42HS-072-694 TL42HS-090-555 TL42HS-100-500 TL42HS-120-416 TL42HS-150-333 TL42HS-180-277 TL42HS-240-208 |
6 7.2 9 10 12 15 18 24 |
833 694 555 500 416 333 277 208 |
TL42HD-060-416 TL42HD-072-347 TL42HD-090-277 TL42HD-100-250 TL42HD-120-208 TL42HD-150-166 TL42HD-180-138 TL42HD-240-104 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
416 347 277 250 208 166 138 104 |
70 |
— |
|
|
6.0VA |
230 |
TL42S-060-1000 TL42S-072-0833 TL42S-090-0666 TL42S-100-0600 TL42S-120-0500 TL42S-150-0400 TL42S-180-0333 TL42S-240-0250 |
6 7.2 9 10 12 15 18 24 |
1000 833 666 600 500 400 333 250 |
TL42D-060-0500 TL42D-072-0416 TL42D-090-0333 TL42D-100-0300 TL42D-120-0250 TL42D-150-0200 TL42D-180-0166 TL42D-240-0125 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
500 416 333 300 250 200 166 125 |
70 |
TUV CE |
|
115 |
TL42US-060-1000 TL42US-072-0833 TL42US-090-0666 TL42US-100-0600 TL42US-120-0500 TL42US-150-0400 TL42US-180-0333 TL42US-240-0250 |
6 7.2 9 10 12 15 18 24 |
1000 833 666 600 500 400 333 250 |
TL42UD-060-0500 TL42UD-072-0416 TL42UD-090-0333 TL42UD-100-0300 TL42UD-120-0250 TL42UD-150-0200 TL42UD-180-0166 TL42UD-240-0125 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
500 416 333 300 250 200 166 125 |
70 |
UL5085-1/-2 C-UL |
|
|
115 (Parallel) or 230 (Series) |
TL42MS-060-1000 TL42MS-072-0833 TL42MS-090-0666 TL42MS-100-0600 TL42MS-120-0500 TL42MS-150-0400 TL42MS-180-0333 TL42MS-240-0250 |
6 7.2 9 10 12 15 18 24 |
1000 833 666 600 500 400 333 250 |
TL42MD-060-0500 TL42MD-072-0416 TL42MD-090-0333 TL42MD-100-0300 TL42MD-120-0250 TL42MD-150-0200 TL42MD-180-0166 TL42MD-240-0125 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
500 416 333 300 250 200 166 125 |
70 |
UL5085-1/-2 C-UL TUV CE |
|
|
400 |
TL42HS-060-1000 TL42HS-072-0833 TL42HS-090-0666 TL42HS-100-0600 TL42HS-120-0500 TL42HS-150-0400 TL42HS-180-0333 TL42HS-240-0250 |
6 7.2 9 10 12 15 18 24 |
1000 833 666 600 500 400 333 250 |
TL42HD-060-0500 TL42HD-072-0416 TL42HD-090-0333 TL42HD-100-0300 TL42HD-120-0250 TL42HD-150-0200 TL42HD-180-0166 TL42HD-240-0125 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
500 416 333 300 250 200 166 125 |
70 |
— |
|
Note:
- TL42S & TL42D series are fail-safe transformers.
- TL42MS, TL42MD series are non-short-circuit proof transformers.
- Items marked with “*” are approved to UL5085-3 (Class 2) & C-UL: CSA C22.2 No. 66-3-06.
