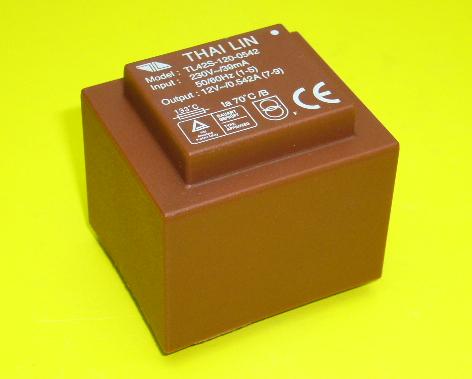

Encapsulated Transformer (EI42 / 21 Series) [ [ |
Features:
Safety Approval:
|
||
| [ |
| Product Series | Primary (V) | Single Secondary | Dual Secondary | ta (°C) | Agency Approval | ||||
| Part Number | Secondary Rating | Part Number | Secondary Rating | ||||||
| (V) | (mA) | (V) | (mA) | ||||||
|
6.5VA
|
230 |
TL42S-060-1084 TL42S-072-0902 TL42S-090-0722 TL42S-100-0650 TL42S-120-0542 TL42S-150-0434 TL42S-180-0361 TL42S-240-0270 |
6 7.2 9 10 12 15 18 24 |
1084 902 722 650 542 434 361 270 |
TL42D-060-0542 TL42D-072-0451 TL42D-090-0361 TL42D-100-0325 TL42D-120-0271 TL42D-150-0217 TL42D-180-0181 TL42D-240-0135 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
542 451 361 325 271 217 181 135 |
70 |
TUV CE |
|
115 |
TL42US-060-1084 TL42US-072-0902 TL42US-090-0722 TL42US-100-0650 TL42US-120-0542 TL42US-150-0434 TL42US-180-0361 TL42US-240-0270 |
6 7.2 9 10 12 15 18 24 |
1084 902 722 650 542 434 361 270 |
TL42UD-060-0542 TL42UD-072-0451 TL42UD-090-0361 TL42UD-100-0325 TL42UD-120-0271 TL42UD-150-0217 TL42UD-180-0181 TL42UD-240-0135 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
542 451 361 325 271 217 181 135 |
70 |
UL5085-1/-2 C-UL |
|
|
115 (Parallel) or 230 (Series) |
TL42MS-060-1084 TL42MS-072-0902 TL42MS-090-0722 TL42MS-100-0650 TL42MS-120-0542 TL42MS-150-0434 TL42MS-180-0361 TL42MS-240-0270 |
6 7.2 9 10 12 15 18 24 |
1084 902 722 650 542 434 361 270 |
TL42MD-060-0542 TL42MD-072-0451 TL42MD-090-0361 TL42MD-100-0325 TL42MD-120-0271 TL42MD-150-0217 TL42MD-180-0181 TL42MD-240-0135 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
542 451 361 325 271 217 181 135 |
70 |
UL5085-1/-2 C-UL TUV CE |
|
|
400 |
TL42HS-060-1084 TL42HS-072-0902 TL42HS-090-0722 TL42HS-100-0650 TL42HS-120-0542 TL42HS-150-0434 TL42HS-180-0361 TL42HS-240-0270 |
6 7.2 9 10 12 15 18 24 |
1084 902 722 650 542 434 361 270 |
TL42HD-060-0542 TL42HD-072-0451 TL42HD-090-0361 TL42HD-100-0325 TL42HD-120-0271 TL42HD-150-0217 TL42HD-180-0181 TL42HD-240-0135 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
542 451 361 325 271 217 181 135 |
70 |
— |
|
|
7.5VA |
230 |
TL42S-060-1250 TL42S-072-1042 TL42S-090-0834 TL42S-100-0750 TL42S-120-0625 TL42S-150-0500 TL42S-180-0416 TL42S-240-0312 |
6 7.2 9 10 12 15 18 24 |
1250 1042 834 750 625 500 416 312 |
TL42D-060-0625 TL42D-072-0521 TL42D-090-0417 TL42D-100-0375 TL42D-120-0312 TL42D-150-0250 TL42D-180-0208 TL42D-240-0156 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
625 521 417 375 312 250 208 156 |
70 |
TUV CE |
|
115 |
TL42US-060-1250 TL42US-072-1042 TL42US-090-0834 TL42US-100-0750 TL42US-120-0625 TL42US-150-0500 TL42US-180-0416 TL42US-240-0312 |
6 7.2 9 10 12 15 18 24 |
1250 1042 834 750 625 500 416 312 |
TL42UD-060-0625 TL42UD-072-0521 TL42UD-090-0417 TL42UD-100-0375 TL42UD-120-0312 TL42UD-150-0250 TL42UD-180-0208 TL42UD-240-0156 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
625 521 417 375 312 250 208 156 |
70 |
UL5085-1/-2 C-UL |
|
|
115 (Parallel) or 230 (Series) |
TL42MS-060-1250 TL42MS-072-1042 TL42MS-090-0834 TL42MS-100-0750 TL42MS-120-0625 TL42MS-150-0500 TL42MS-180-0416 TL42MS-240-0312 |
6 7.2 9 10 12 15 18 24 |
1250 1042 834 750 625 500 416 312 |
TL42MD-060-0625 TL42MD-072-0521 TL42MD-090-0417 TL42MD-100-0375 TL42MD-120-0312 TL42MD-150-0250 TL42MD-180-0208 TL42MD-240-0156 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
625 521 417 375 312 250 208 156 |
70 |
UL5085-1/-2 C-UL TUV CE |
|
|
400 |
TL42HS-060-1250 TL42HS-072-1042 TL42HS-090-0834 TL42HS-100-0750 TL42HS-120-0625 TL42HS-150-0500 TL42HS-180-0416 TL42HS-240-0312 |
6 7.2 9 10 12 15 18 24 |
1250 1042 834 750 625 500 416 312 |
TL42HD-060-0625 TL42HD-072-0521 TL42HD-090-0417 TL42HD-100-0375 TL42HD-120-0312 TL42HD-150-0250 TL42HD-180-0208 TL42HD-240-0156 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
625 521 417 375 312 250 208 156 |
70 |
— |
|
|
8.5VA |
230 |
TL42S-060-1416 TL42S-072-1180 TL42S-090-0944 TL42S-100-0850 TL42S-120-0708 TL42S-150-0566 TL42S-180-0472 TL42S-240-0354 |
6 7.2 9 10 12 15 18 24 |
1416 1180 944 850 708 566 472 354 |
TL42D-060-0708 TL42D-072-0590 TL42D-090-0472 TL42D-100-0425 TL42D-120-0354 TL42D-150-0283 TL42D-180-0236 TL42D-240-0177 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
708 590 472 425 354 283 236 177 |
70 |
TUV CE |
|
115 |
TL42US-060-1416 TL42US-072-1180 TL42US-090-0944 TL42US-100-0850 TL42US-120-0708 TL42US-150-0566 TL42US-180-0472 TL42US-240-0354 |
6 7.2 9 10 12 15 18 24 |
1416 1180 944 850 708 566 472 354 |
TL42UD-060-0708 TL42UD-072-0590 TL42UD-090-0472 TL42UD-100-0425 TL42UD-120-0354 TL42UD-150-0283 TL42UD-180-0236 TL42UD-240-0177 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
708 590 472 425 354 283 236 177 |
70 |
UL5085-1/-2 C-UL |
|
|
115 (Parallel) or 230 (Series) |
TL42MS-060-1416 TL42MS-072-1180 TL42MS-090-0944 TL42MS-100-0850 TL42MS-120-0708 TL42MS-150-0566 TL42MS-180-0472 TL42MS-240-0354 |
6 7.2 9 10 12 15 18 24 |
1416 1180 944 850 708 566 472 354 |
TL42MD-060-0708 TL42MD-072-0590 TL42MD-090-0472 TL42MD-100-0425 TL42MD-120-0354 TL42MD-150-0283 TL42MD-180-0236 TL42MD-240-0177 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
708 590 472 425 354 283 236 177 |
70 |
UL5085-1/-2 C-UL TUV CE |
|
|
400 |
TL42HS-060-1416 TL42HS-072-1180 TL42HS-090-0944 TL42HS-100-0850 TL42HS-120-0708 TL42HS-150-0566 TL42HS-180-0472 TL42HS-240-0354 |
6 7.2 9 10 12 15 18 24 |
1416 1180 944 850 708 566 472 354 |
TL42HD-060-0708 TL42HD-072-0590 TL42HD-090-0472 TL42HD-100-0425 TL42HD-120-0354 TL42HD-150-0283 TL42HD-180-0236 TL42HD-240-0177 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
708 590 472 425 354 283 236 177 |
70 |
— |
|
Note:
- TL42S & TL42D series are fail-safe transformers.
- TL42MS, TL42MD series are non-short-circuit proof transformers.
| Product Catalog | |
 Encapsulated-Transformer-EI42x21-6.5-7.5-8.5VA |
[][]
