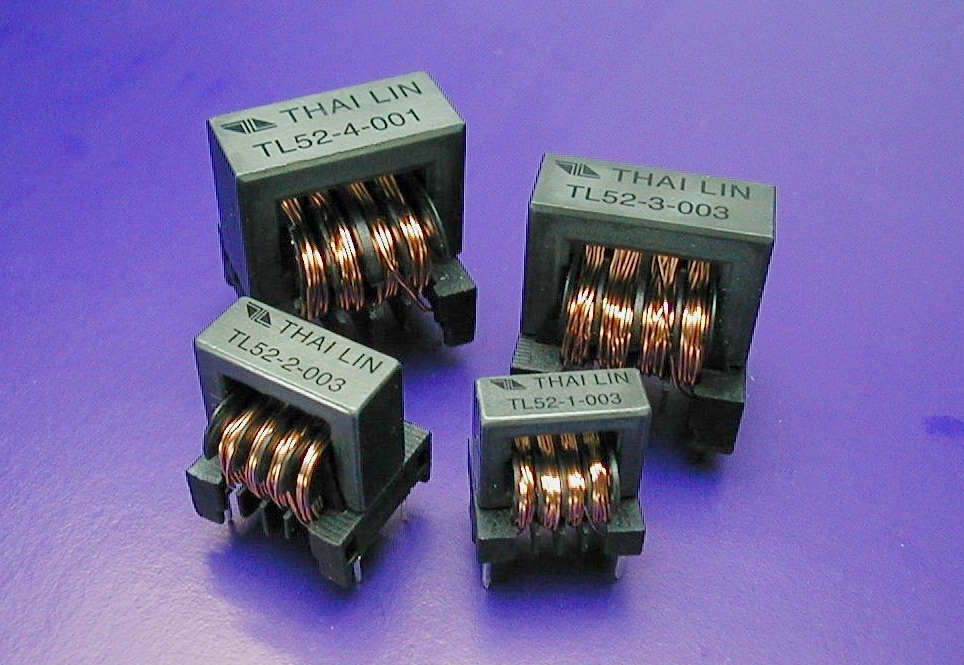

Noise Suppression Choke (TL52 Series)

Features:

Excellent for devices equipped with switched-mode power supplies
Standard inductance : 3.3 ~ 47mH
Standard rated current : 0.4 ~ 4.6A
Dielectric strength : 1500Vrms, 50Hz, 3 sec. (winding – winding)
Closed core shape
Custom-made chokes are available upon request

Part Number

Inductance (mH, ±30%)

Rated Current (Arms)

DCR (ohm, nominal)

Part Number

Inductance (mH, ±30%)

Rated Current (Arms)

DCR (ohm, nominal)

TL52-1-001

TL52-1-002

TL52-1-003

TL52-1-004

TL52-1-005

TL52-1-006

TL52-1-007

3.3

6.8

10.0

15.0

27.0

39.0

47.0

1.5

1.2

0.9

0.8

0.5

0.4

0.15

0.29

0.50

0.69

1.3

2.0

2.2

TL52-3-001

TL52-3-002

TL52-3-003

TL52-3-004

TL52-3-005

TL52-3-006

TL52-3-007

3.3

6.8

10.0

15.0

27.0

39.0

47.0

3.9

2.4

2.2

1.7

1.4

1.1

1.0

0.054

0.12

0.16

0.25

0.41

0.75

0.82

TL52-2-001

TL52-2-002

TL52-2-003

TL52-2-004

TL52-2-005

TL52-2-006

TL52-2-007

3.3

6.8

10.0

15.0

27.0

39.0

47.0

2.1

1.6

1.4

1.1

0.8

0.7

0.6

0.10

0.17

0.25

0.44

0.72

1.00

1.20

TL52-4-001

TL52-4-002

TL52-4-003

TL52-4-004

TL52-4-005

TL52-4-006

TL52-4-007

3.3

6.8

10.0

15.0

27.0

39.0

47.0

4.6

3.2

2.6

2.4

1.8

1.5

1.4

0.048

0.095

0.14

0.18

0.31

0.50

0.52
