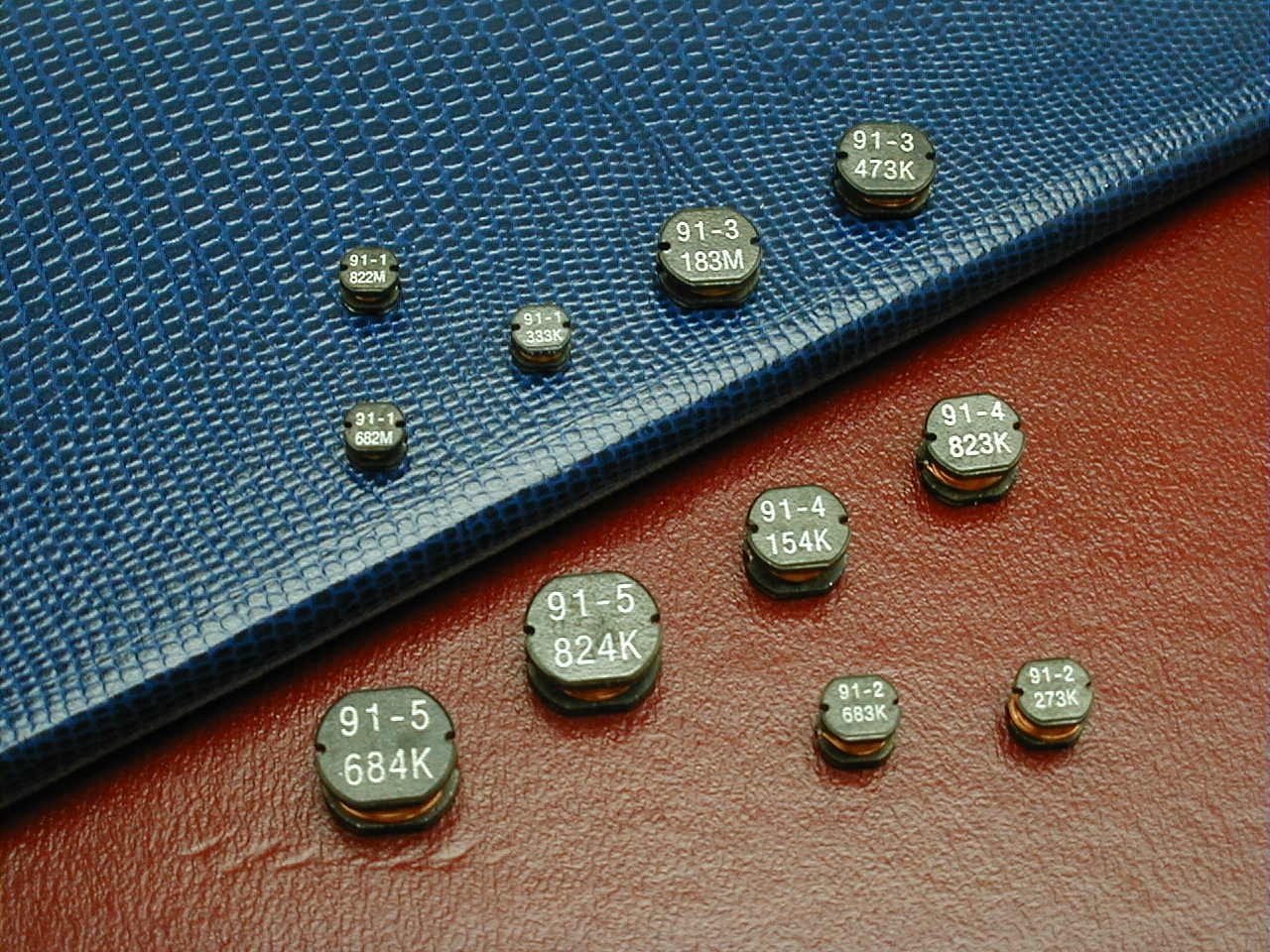

SMT Power Inductor (TL91 Series) [ |
[][] | Features:
|
|
| [ |
| Part Number | Inductance (uH) | Test Frequency | DCR (ohm, max.) | Rated Current (ADC) | Part Number | Inductance (uH) | Test Frequency | DCR (ohm, max.) | Rated Current (ADC) |
| TL91-1-102M
TL91-1-152M TL91-1-182M TL91-1-222M TL91-1-272M TL91-1-332M TL91-1-392M TL91-1-472M TL91-1-562M TL91-1-682M TL91-1-822M |
1.0 ± 20%
1.5 ± 20% 1.8 ± 20% 2.2 ± 20% 2.7 ± 20% 3.3 ± 20% 3.9 ± 20% 4.7 ± 20% 5.6 ± 20% 6.8 ± 20% 8.2 ± 20% |
7.96 MHz
7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz |
0.048
0.056 0.063 0.071 0.078 0.086 0.093 0.108 0.125 0.131 0.146 |
2.7
2.6 2.0 1.9 1.8 1.7 1.6 1.5 1.4 1.3 1.2 |
TL91-1-103M
TL91-1-123M TL91-1-153M TL91-1-183M TL91-1-223M TL91-1-273M TL91-1-333K TL91-1-393K TL91-1-473K TL91-1-563K TL91-1-683K |
10 ± 20%
12 ± 20% 15 ± 20% 18 ± 20% 22 ± 20% 27 ± 20% 33 ± 10% 39 ± 10% 47 ± 10% 56 ± 10% 68 ± 10% |
2.52 MHz
2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz |
0.182
0.210 0.235 0.338 0.378 0.522 0.540 0.587 0.844 0.937 1.117 |
1.1
0.97 0.85 0.74 0.68 0.62 0.56 0.52 0.44 0.42 0.37 |
| TL91-2-103M
TL91-2-123M TL91-2-153M TL91-2-183M TL91-2-223M TL91-2-273K TL91-2-333K TL91-2-393K |
10 ± 20%
12 ± 20% 15 ± 20% 18 ± 20% 22 ± 20% 27 ± 10% 33 ± 10% 39 ± 10% |
2.52 MHz
2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz |
0.10
0.12 0.14 0.15 0.18 0.20 0.23 0.32 |
1.5
1.4 1.3 1.2 1.1 0.97 0.88 0.80 |
TL91-2-473K
TL91-2-563K TL91-2-683K TL91-2-823K TL91-2-104K TL91-2-124K TL91-2-154K TL91-2-184K |
47 ± 10%
56 ± 10% 68 ± 10% 82 ± 10% 100 ± 10% 120 ± 10% 150 ± 10% 180 ± 10% |
2.52 MHz
2.52 MHz 2.52 MHz 2.52 MHz 1 kHz 1 kHz 1 kHz 1 kHz |
0.37
0.42 0.46 0.60 0.70 0.93 1.10 1.38 |
0.72
0.68 0.61 0.58 0.52 0.48 0.40 0.38 |
| TL91-3-103M
TL91-3-123M TL91-3-153M TL91-3-183M TL91-3-223M TL91-3-273M TL91-3-333K TL91-3-393K TL91-3-473K TL91-3-563K |
10 ± 20%
12 ± 20% 15 ± 20% 18 ± 20% 22 ± 20% 27 ± 20% 33 ± 10% 39 ± 10% 47 ± 10% 56 ± 10% |
2.52 MHz
2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz |
0.08
0.09 0.10 0.11 0.13 0.15 0.17 0.22 0.25 0.28 |
1.44
1.39 1.24 1.12 1.07 0.94 0.85 0.74 0.68 0.64 |
TL91-3-683K
TL91-3-823K TL91-3-104K TL91-3-124K TL91-3-154K TL91-3-184K TL91-3-224K TL91-3-274K TL91-3-334K |
68 ± 10%
82 ± 10% 100 ± 10% 120 ± 10% 150 ± 10% 180 ± 10% 220 ± 10% 270 ± 10% 330 ± 10% |
2.52 MHz
2.52 MHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz |
0.33
0.41 0.48 0.54 0.75 1.02 1.20 1.31 1.50 |
0.59
0.54 0.51 0.49 0.40 0.36 0.31 0.29 0.28 |
| TL91-4-103M
TL91-4-123M TL91-4-153M TL91-4-183M TL91-4-223M TL91-4-273M TL91-4-333K TL91-4-393K TL91-4-473K TL91-4-563K TL91-4-683K |
10 ± 20%
12 ± 20% 15 ± 20% 18 ± 20% 22 ± 20% 27 ± 20% 33 ± 10% 39 ± 10% 47 ± 10% 56 ± 10% 68 ± 10% |
2.52 MHz
2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz |
0.07
0.08 0.09 0.10 0.11 0.12 0.13 0.16 0.18 0.24 0.28 |
2.30
2.00 1.80 1.60 1.50 1.30 1.20 1.10 1.10 0.94 0.85 |
TL91-4-823K
TL91-4-104K TL91-4-124K TL91-4-154K TL91-4-184K TL91-4-224K TL91-4-274K TL91-4-334K TL91-4-394K TL91-4-474K |
82 ± 10%
100 ± 10% 120 ± 10% 150 ± 10% 180 ± 10% 220 ± 10% 270 ± 10% 330 ± 10% 390 ± 10% 470 ± 10% |
2.52 MHz
1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz |
0.37
0.43 0.47 0.64 0.71 0.96 1.11 1.26 1.77 1.96 |
0.78
0.72 0.66 0.58 0.51 0.49 0.42 0.40 0.36 0.34 |
| TL91-5-103M
TL91-5-123M TL91-5-153M TL91-5-183M TL91-5-223M TL91-5-273M TL91-5-333M TL91-5-393M TL91-5-473K TL91-5-563K TL91-5-683K TL91-5-823K |
10 ± 20%
12 ± 20% 15 ± 20% 18 ± 20% 22 ± 20% 27 ± 20% 33 ± 20% 39 ± 20% 47 ± 10% 56 ± 10% 68 ± 10% 82 ± 10% |
2.52 MHz
2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz 2.52 MHz |
0.06
0.07 0.08 0.09 0.10 0.11 0.12 0.14 0.17 0.19 0.22 0.25 |
2.60
2.45 2.27 2.15 1.96 1.76 1.50 1.37 1.28 1.17 1.11 1.00 |
TL91-5-104K
TL91-5-124K TL91-5-154K TL91-5-184K TL91-5-224K TL91-5-274K TL91-5-334K TL91-5-394K TL91-5-474K TL91-5-564K TL91-5-684K TL91-5-824K |
100 ± 10%
120 ± 10% 150 ± 10% 180 ± 10% 220 ± 10% 270 ± 10% 330 ± 10% 390 ± 10% 470 ± 10% 560 ± 10% 680 ± 10% 820 ± 10% |
1 kHz
1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz 1 kHz |
0.35
0.40 0.47 0.63 0.73 0.97 1.15 1.30 1.48 1.90 2.25 2.55 |
0.97
0.89 0.78 0.72 0.66 0.57 0.52 0.48 0.42 0.33 0.28 0.24 |
