High Current Filter Inductor (TL62 Series)

High Current Filter Inductor (TL62 Series)

[

 [][] Features:

  • Inductance range : 14 ~ 498mH
  • Current range : 1 ~ 10A

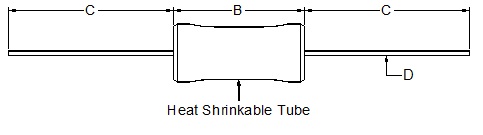

  • Sleeved with UL-approved heat shrinkable tube
  • Custom-made inductors are available upon request

]
[
Part Number Inductance (uH, ± 10%) Test Frequency DCR (ohm, max.) Rated Current (ADC, max.) Part Number Inductance (uH, ± 10%) Test Frequency DCR (ohm, max.) Rated Current (ADC, max.)
TL62-1-392

TL62-1-472

TL62-1-562

TL62-1-682

TL62-1-822

 3.9

4.7

5.6

6.8

8.2

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 0.007

0.008

0.011

0.011

0.013

 9.8

9.1

7.8

7.6

7.2

 TL62-1-105

TL62-1-125

TL62-1-155

TL62-1-185

TL62-1-225

 1.0

1.2

1.5

1.8

2.2

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 0.844

0.977

1.18

1.50

1.76

 0.89

0.83

0.75

0.67

0.62
TL62-1-103

TL62-1-123

TL62-1-153

TL62-1-183

TL62-1-223

 10

12

15

18

22

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 0.016

0.018

0.020

0.022

0.024

 6.4

6.1

5.8

5.5

5.3

 TL62-1-275

TL62-1-335

TL62-1-395

TL62-1-475

TL62-1-565

 2.7

3.3

3.9

4.7

5.6

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 2.13

2.53

2.84

3.79

4.24

 0.56

0.51

0.48

0.42

0.40
TL62-1-273

TL62-1-333

TL62-1-393

TL62-1-473

TL62-1-563

 27

33

39

47

56

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 0.025

0.028

0.031

0.034

0.043

 5.2

4.9

4.6

4.5

3.9

 TL62-1-685

TL62-1-825

TL62-1-106

TL62-1-126

TL62-1-156

 6.8

8.2

10

12

15

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 5.75

6.44

7.30

9.34

10.7

 0.34

0.32

0.30

0.27

0.25
TL62-1-683

TL62-1-823

TL62-1-104

TL62-1-124

TL62-1-154

 68

82

100

120

150

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 0.059

0.066

0.084

0.113

0.129

 3.4

3.2

2.8

2.4

2.3

 TL62-1-186

TL62-1-226

TL62-1-276

TL62-1-336

TL62-1-396

 18

22

27

33

39

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 14.8

18.0

22.7

25.7

29.7

 0.21

0.19

0.17

0.16

0.15
TL62-1-184

TL62-1-224

TL62-1-274

TL62-1-334

TL62-1-394

 180

220

270

330

390

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 0.150

0.162

0.226

0.257

0.288

 2.1

2.0

1.7

1.6

1.5

 TL62-1-476

TL62-1-566

TL62-1-686

TL62-1-826

TL62-1-107

 47

56

68

82

100

 1 kHz

1 kHz

1 kHz

1 kHz

1 kHz

 33.7

38.0

52.8

67.3

76.0

 0.14

0.13

0.11

0.10

0.09
TL62-1-474

TL62-1-564

TL62-1-684

TL62-1-824

 470

560

680

820

 1 kHz

1 kHz

1 kHz

1 kHz

 0.393

0.504

0.570

0.643

 1.3

1.2

1.1

1.0
