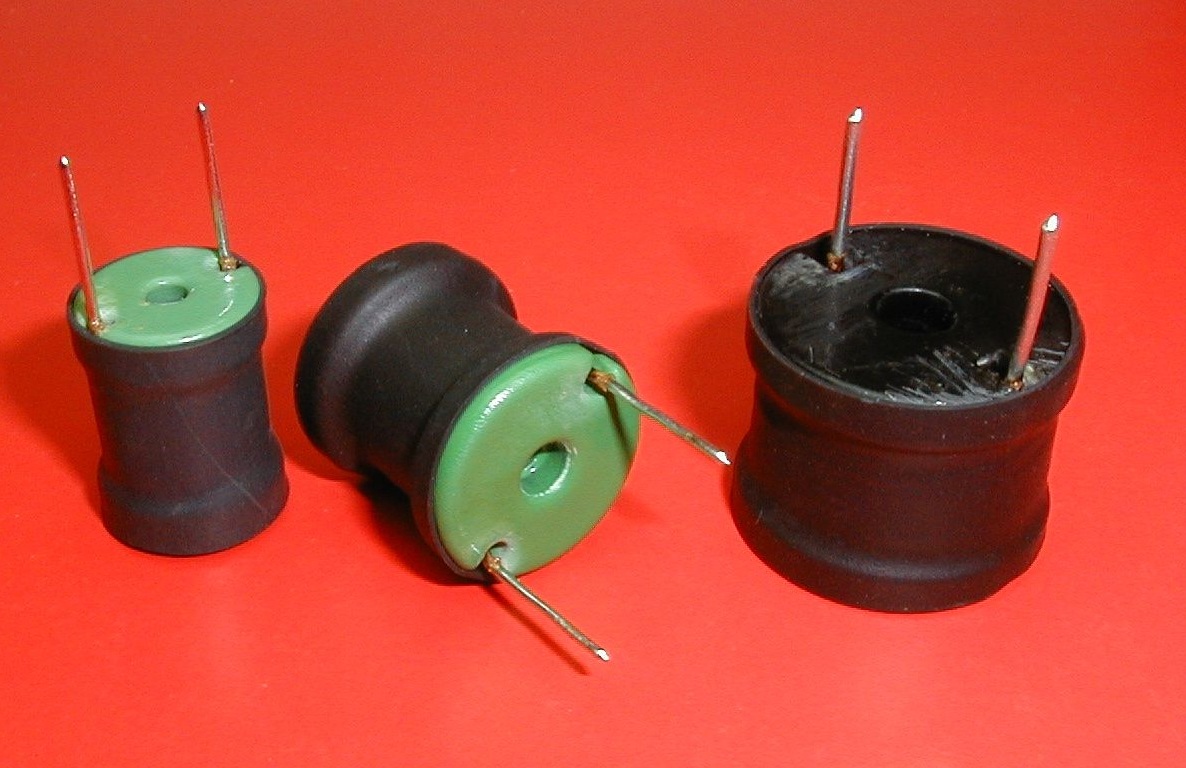

Power Line Choke (TL90 Series)

[

[][]

Features:

High saturation materials, ideal for applications requiring both high-current rating and small size
Used in switching regulators, power supplies, SCR and Triac controls, RFI suppression and filters
Finished with UL-VW-1 rated sleeve
With center hole for mechanical mounting
Custom-made chokes are available upon request

[

Part Number

Inductance (uH)

Test Frequency

DCR (m ohm, max.)

Rated Current (A DC)

Part Number

Inductance (uH)

Test Frequency

DCR (m ohm, max.)

Rated Current (A DC)

TL90-1-102M

TL90-1-152M

TL90-1-222M

TL90-1-272M

TL90-1-332M

1.0 ± 20%

1.5 ± 20%

2.2 ± 20%

2.7 ± 20%

3.3 ± 20%

1 kHz

9.0

TL90-1-333K

TL90-1-393K

TL90-1-473K

TL90-1-563K

TL90-1-683K

33 ± 10%

39 ± 10%

47 ± 10%

56 ± 10%

68 ± 10%

1 kHz

4.0

2.8

TL90-1-392M

TL90-1-472M

TL90-1-562M

TL90-1-682M

TL90-1-822M

3.9 ± 20%

4.7 ± 20%

5.6 ± 20%

6.8 ± 20%

8.2 ± 20%

1 kHz

9.0

TL90-1-823K

TL90-1-104K

TL90-1-124K

TL90-1-154K

TL90-1-184K

82 ± 10%

100 ± 10%

120 ± 10%

150 ± 10%

180 ± 10%

1 kHz

100

130

180

220

2.8

2.0

1.6

TL90-1-103K

TL90-1-123K

TL90-1-153K

TL90-1-183K

TL90-1-223K

10 ± 10%

12 ± 10%

15 ± 10%

18 ± 10%

22 ± 10%

1 kHz

9.0

7.2

5.5

TL90-1-224K

TL90-1-274K

TL90-1-334K

TL90-1-394K

TL90-1-474K

220 ± 10%

270 ± 10%

330 ± 10%

390 ± 10%

470 ± 10%

1 kHz

240

300

340

460

640

1.6

1.3

1.0

0.8

TL90-1-273K

27 ± 10%

1 kHz

4.5

TL90-1-564K

560 ± 10%

1 kHz

700

0.8

TL90-2-102M

TL90-2-222M

TL90-2-332M

TL90-2-392M

TL90-2-472M

1.0 ± 20%

2.2 ± 20%

3.3 ± 20%

3.9 ± 20%

4.7 ± 20%

1 kHz

TL90-3-152M

TL90-3-222M

TL90-3-332M

TL90-3-472M

TL90-3-682M

1.5 ± 20%

2.2 ± 20%

3.3 ± 20%

4.7 ± 20%

6.8 ± 20%

1 kHz

TL90-2-562M

TL90-2-682M

TL90-2-822M

TL90-2-103M

TL90-2-123K

5.6 ± 20%

6.8 ± 20%

8.2 ± 20%

10 ± 20%

12 ± 10%

1 kHz

TL90-3-822M

TL90-3-103M

TL90-3-123M

TL90-3-153K

TL90-3-183K

8.2 ± 20%

10 ± 20%

12 ± 20%

15 ± 10%

18 ± 10%

1 kHz

TL90-2-153K

TL90-2-183K

TL90-2-223K

TL90-2-273K

TL90-2-333K

15 ± 10%

18 ± 10%

22 ± 10%

27 ± 10%

33 ± 10%

1 kHz

9.0

7.2

5.5

TL90-3-223K

TL90-3-273K

TL90-3-333K

TL90-3-393K

TL90-3-473K

22 ± 10%

27 ± 10%

33 ± 10%

39 ± 10%

47 ± 10%

1 kHz

9.0

TL90-2-393K

TL90-2-473K

TL90-2-563K

TL90-2-683K

TL90-2-823K

39 ± 10%

47 ± 10%

56 ± 10%

68 ± 10%

82 ± 10%

1 kHz

5.5

4.8

TL90-3-563K

TL90-3-683K

TL90-3-823K

TL90-3-104K

TL90-3-124K

56 ± 10%

68 ± 10%

82 ± 10%

100 ± 10%

120 ± 10%

1 kHz

9.0

7.2

TL90-2-104K

TL90-2-124K

TL90-2-154K

TL90-2-184K

TL90-2-224K

100 ± 10%

120 ± 10%

150 ± 10%

180 ± 10%

220 ± 10%

1 kHz

100

110

150

4.0

2.8

TL90-3-154K

TL90-3-184K

TL90-3-224K

TL90-3-274K

TL90-3-334K

150 ± 10%

180 ± 10%

220 ± 10%

270 ± 10%

330 ± 10%

1 kHz

110

120

5.5

4.5

TL90-2-274K

TL90-2-334K

TL90-2-394K

TL90-2-474K

TL90-2-564K

270 ± 10%

330 ± 10%

390 ± 10%

470 ± 10%

560 ± 10%

1 kHz

210

310

320

360

390

2.0

1.6

TL90-3-394K

TL90-3-474K

TL90-3-564K

TL90-3-684K

TL90-3-824K

390 ± 10%

470 ± 10%

560 ± 10%

680 ± 10%

820 ± 10%

1 kHz

170

190

210

260

290

4.0

2.8

TL90-2-684K

TL90-2-824K

TL90-2-105K

TL90-2-125K

TL90-2-155K

680 ± 10%

820 ± 10%

1000 ± 10%

1200 ± 10%

1500 ± 10%

1 kHz

430

590

820

1100

1300

1.6

1.3

1.0

0.8

TL90-3-105K

TL90-3-125K

TL90-3-155K

TL90-3-185K

TL90-3-225K

1000 ± 10%

1200 ± 10%

1500 ± 10%

1800 ± 10%

2200 ± 10%

1 kHz

430

460

520

710

1000

2.0

1.6

1.3

TL90-2-185K

TL90-2-225K

[

1800 ± 10%

2200 ± 10%

[

1 kHz

[

1400

1500

[

0.8

[

TL90-3-275K

TL90-3-335K

TL90-3-395K

TL90-3-475K

2700 ± 10%

3300 ± 10%

3900 ± 10%

4700 ± 10%

1 kHz

1100

1300

1700

1900

1.3

1.0

Part number suffix : M – represents the Inductance Tolerance of ± 20%

K – represents the Inductance Tolerance of ± 10%
