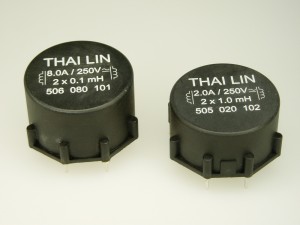

Encapsulated Differential Mode Choke (TL505 / 506 Series)

Encapsulated Differential Mode Choke (TL505 / 506 Series)


 Features:

  • Rated voltage : 250VAC, 50/60Hz
  • Dielectric strength : 2000Vrms
  • Insulation Class : Class B (130°C)
  • Ambient temperature : +40°C
  • Storage temperature : -25°C ~ +40°C
  • High thermal stability due to complete potting
  • Design Complies with EN60938-2 (VDE 0565-2)

[

[]

Product Series Dimension (mm) Weight (g)
A B C D E F G
TL505 42.7 44.0 25.0 3.5 SQ1.0 15.0 40.0 100.0
TL506 42.7 44.0 30.0 3.5 SQ1.0 15.0 40.0 125.0
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±0.1 ±0.5 ±0.5 approx.
Part Number Inductance (mH) Current (A) DC Resistance (ohm, max.)
TL505-010-332
TL505-020-102
TL505-030-501
TL505-040-301
TL505-050-121
TL505-060-051
TL506-010-502
TL506-020-122
TL506-030-701
TL506-040-401
TL506-050-251
TL506-060-151
TL506-080-101
TL506-100-031		 2 x 3.3
2 x 1.0
2 x 0.5
2 x 0.3
2 x 0.12
2 x 0.05
2 x 5.0
2 x 1.2
2 x 0.7
2 x 0.4
2 x 0.25
2 x 0.15
2 x 0.10
2 x 0.03		 1.0
2.0
3.0
4.0
5.0
6.0
1.0
2.0
3.0
4.0
5.0
6.0
8.0
10.0		 1.40
0.49
0.20
0.111
0.055
0.030
1.95
0.55
0.27
0.15
0.092
0.055
0.033
0.014
