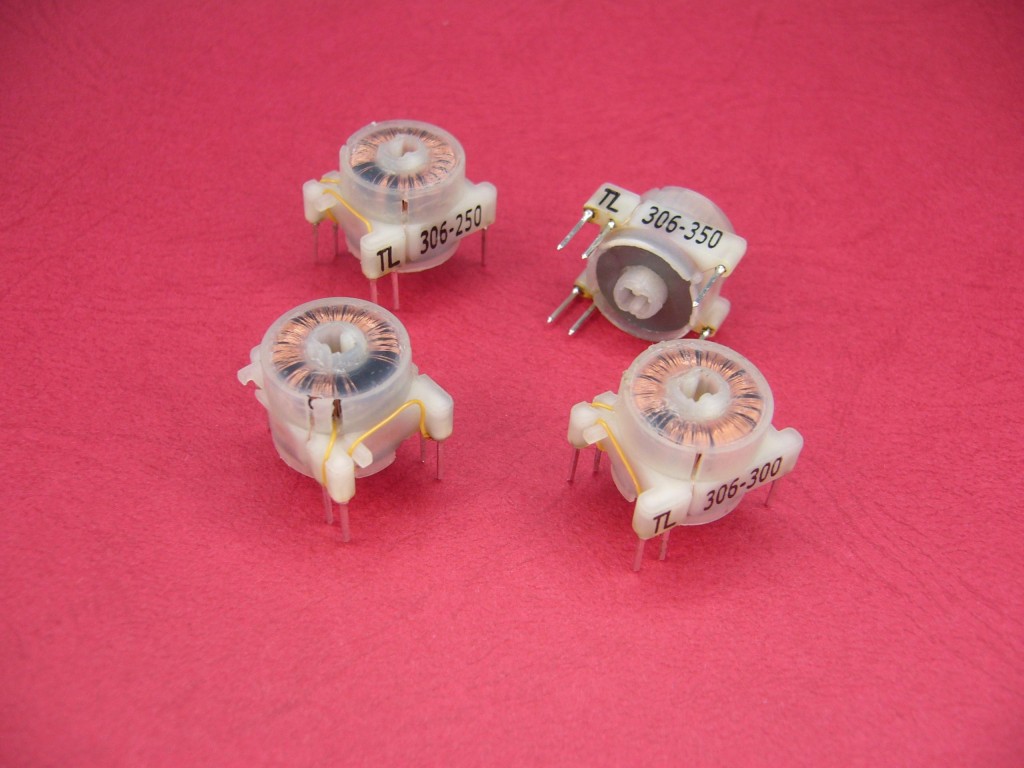

Ground Fault Circuit Coil Assembly (TL306 Series)

Ground Fault Circuit Coil Assembly (TL306 Series)

[

 [][] Features:

  • All materials are designated under Insulation Class B (130°C)
  • Dielectric strength between windings: 2500Vrms min. 3sec.
  • Max. operating temperature: +85°C
  • Construction by two toroidal coils with shield washer, insulator and holder.
  • All winding are AWG#40 2UEW 155°C
  • Reset wire is AWG#30 Triple insulated wire.
  • RoHS Compliant

]
[

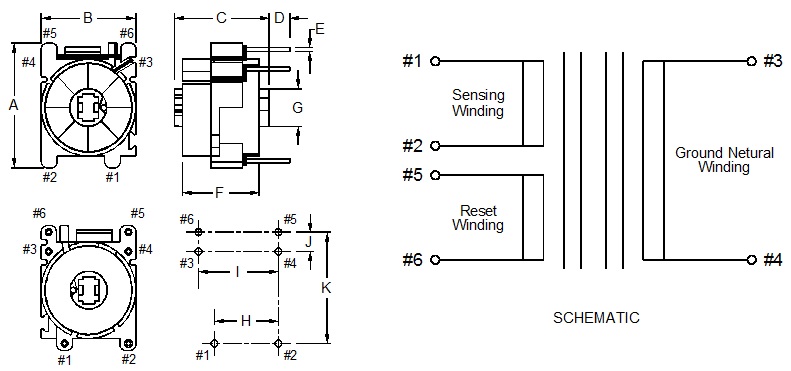

A B C D E F G H I J K     Weight      (g)
Dimension (mm) 21.0 16.5 17.0 3.0 SQ 0.64 13.5 6.25 10.8 13.5 3.2 18.4 6.0
Tolerance (mm) max. max. max. ±0.3 ±0.3 max. ±0.3 ±0.3 ±0.3 ±0.3 ±0.5 approx.

[]

Part Number Sensing Winding Ground Neutral Winding Reset Winding
Turns DCR (ohm) Turns DCR (ohm) Turns
TL306-100

TL306-120

TL306-150

TL306-200

TL306-250

TL306-300

TL306-350

TL306-400

 1000

1000

1000

1000

1000

1000

1000

1000

 48.9

48.9

48.9

48.9

48.9

48.9

48.9

48.9

 100

120

150

200

250

300

350

400

 5.6

6.8

8.3

10.7

13.5

16.4

19.0

21.7

 1

1

1

1

1

1

1

1

Note: Can be applied without reset winding, add suffix “A” in P/N. e.g. TL306-200A
