High Efficiency Non Stablized DC Power Supply (TL491 Series)[ |
[][] | Features:
Safety Approval (transformer only#):
|
|
| ] |
[]

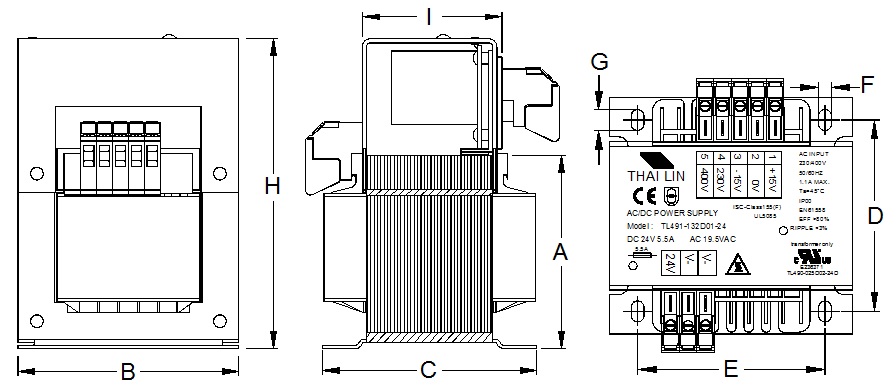

| Product Series | Rated Power (W) | Dimension (mm) | No of Output Terminals | Weight (kg) | |||||||||
| A | B | C | D | E | F | G | H | I | +v | -v | |||
|
TL491-132 |
132 |
87 |
96 |
101 |
86 |
84 |
5.8 |
10 |
143 |
66.5 |
1 |
2 |
3.9 |
|
TL491-180 |
180 |
96 |
105 |
103 |
85.6 |
80.2 |
5.8 |
12 |
155 |
65 |
2 |
2 |
4.6 |
|
TL491-240 |
240 |
105 |
117 |
102 |
85 |
90 |
5.8 |
12 |
175 |
62 |
2 |
2 |
5.4 |
|
TL491-300 |
300 |
105 |
117 |
121 |
104 |
902 |
5.8 |
12 |
175 |
81 |
2 |
2 |
7.0 |
|
Tolerance (mm) |
– |
typ. |
typ. |
typ. |
typ. |
typ. |
±0.5 |
±1.0 |
typ. |
typ. |
– |
– |
approx. |
[]

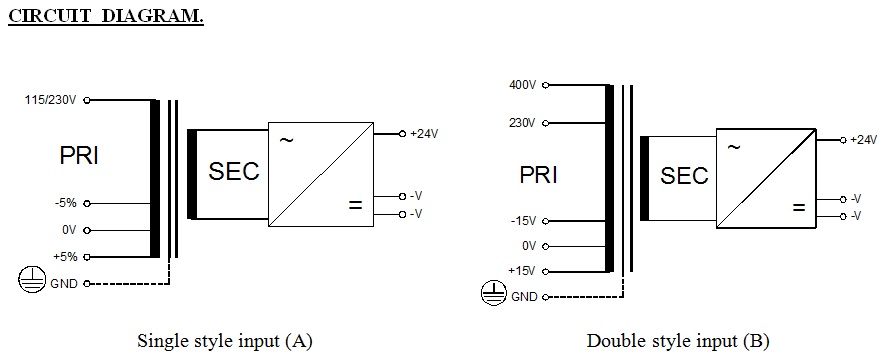

| Part Number | Rated Power (W) | Rated Input Voltage (Vrms) | Rated Output Voltage (Vdc) | Rated Ouput Current (Adc) | Efficiency (%) | Ripple Factor (%) | Electrical Diagram |
|
TL491-132S03-24 TL491-180S03-24 TL491-240S03-24 TL491-300S03-24 |
132 180 240 300 |
115 ±5% |
24 |
5.5 7.5 10.0 12.5 |
>80 |
<3 |
A |
|
TL491-132S07-24 TL491-180S07-24 TL491-240S07-24 TL491-300S07-24 |
132 180 240 300 |
230 ±5% |
24 |
5.5 7.5 10.0 12.5 |
>80 |
<3 |
A |
|
TL491-132D01-24 TL491-180D01-24 TL491-240D01-24 TL491-300D01-24 |
132 180 240 300 |
230/400 ±15V |
24 |
5.5 7.5 10.0 12.5 |
>80 |
<3 |
B |
Note:
1) Safety isolating transformer meets to DIN EN61558-2-6, UL5085-1/-2, CSA22.2 NO.66
2) Insulation class: Class F (155°C)
3) Dielectric strength: 4000Vrms
4) Non-Short-Circuit Proof
5) Protection Index: IP00
6) Input & Output Connections:
- Screw-Type Terminals
- Flat-Type (6.3*0.8) Connectors
7) Touch-Safe screw terminal blocks according to DIN EN 50274
8) RoHS complied
9) Can be supplied without input taps for single / double style input, add suffix “A” in P/N. (TL491-132S03-24A)
10) Fixing method: Base plate & M5 fixing screws.
