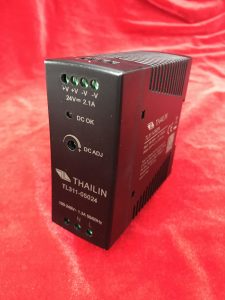

Switching Mode Power Supply for DIN Rail Mounting (TL311-050 Series)

Switching Mode Power Supply for DIN Rail Mounting (TL311-050 Series)

   Features:

  • Rated Input: AC100V – 240V 50Hz / 60Hz
  • Insulation Class: B (130°C)
  • Flammability : UL94V0
  • Dielectric Strength: 3000VAC
  • Ambient temperature (ta) -20°C – +70°C                      (Refer to “Derating Curve”)
  • Storage temperature : -40°C – +85°C
  • Power OK with LED indicator
  • DIN-rails as per EN 50022-35×15/7.5                          (snap-on with self-locking spring)
  • Convection cooling
  • Short circuit and over voltage protected
  • CE and UL marked
  • Construction conforms to EN62368-1, ECN60950-1, EN55032, EN55035

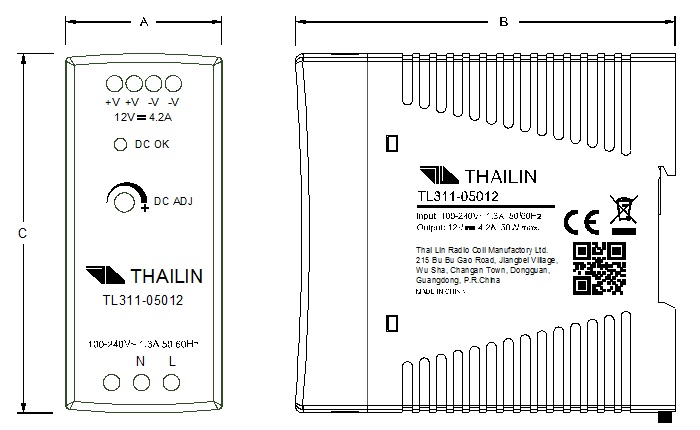

Product Series Dimension (mm) Weight (g)
A B C
TL311-050 40.0 97.5 93.0 240
Tolerance ±0.5 ±0.5 ±0.5 approx.



Part Number Output Voltage  (DC Volt) Output Current  (DC mA) max. Output Power  (W) max. Regulation   (%) Ripple & noise (mV) +V adjust range (V) Efficiency  (%)
TL311-05005

TL311-05012

TL311-05024

TL311-05048

 5

12

24

48

 8000

4200

2100

1050

 40

50

50

50

 2

2

2

2

 100

200

200

200

 5.0-5.8

11.5 – 14

23 – 28

47 – 56

 >83

>86

>86

>86

Note : Under no-load & full load condition, the output voltage tolerance is ±5%.

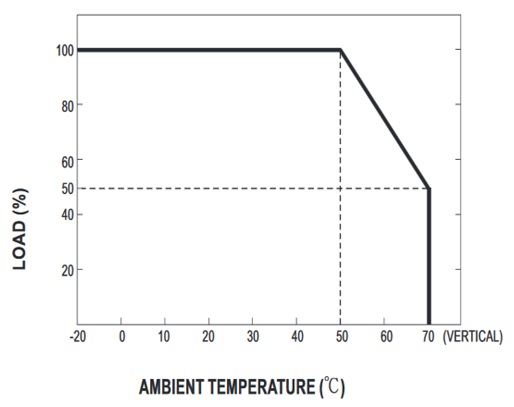

  • Derating Curve

















Switching Mode Power Supply for DIN Rail Mounting



Product Catalog
Switching-Mode-Power-Supply-For-DIN-Rail-Mounting-TL311-050 Series
