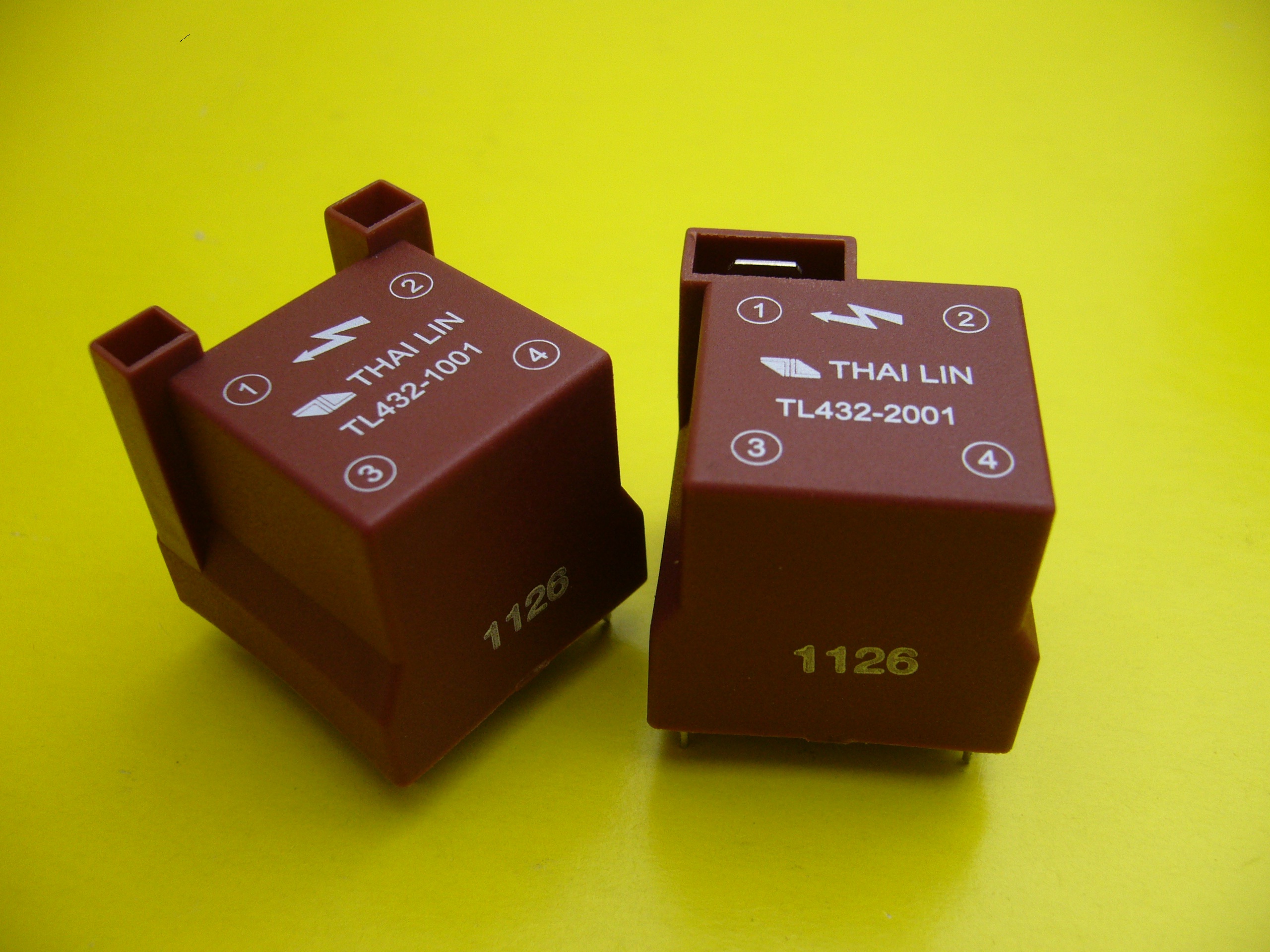

Ignition Transformer (TL432 Series) [ |
[][] | Features:
] ]
|
|
| [ |
| Part Number | Primary Inductance (uH, ±20%) | Secondary Inductance (mH, ±20%) | Primary DC Resistance (m ohm, ±15%) | Secondary DC Resistance (ohm, ±15%) | Turn Ratio (Pri : Sec) | Secondary Voltage @ load 30pF | Spark Gap |
| TL432-1001
TL432-2001 |
25
25 |
320
320 |
75
75 |
800
800 |
1 : 120
1 : 120 |
20kV (typ.)
20kV (typ.) |
4 – 8
4 – 8 |
